AUDIOCONTROL
Two Channel Output Converter
Pickup currently unavailable at Precision Audio & Video Experts Storefront
Two Channel Output Converter
Precision Audio & Video Experts Storefront
Pickup currently unavailable
87 Sunset Blvd
Stevens Point WI 54481
United States

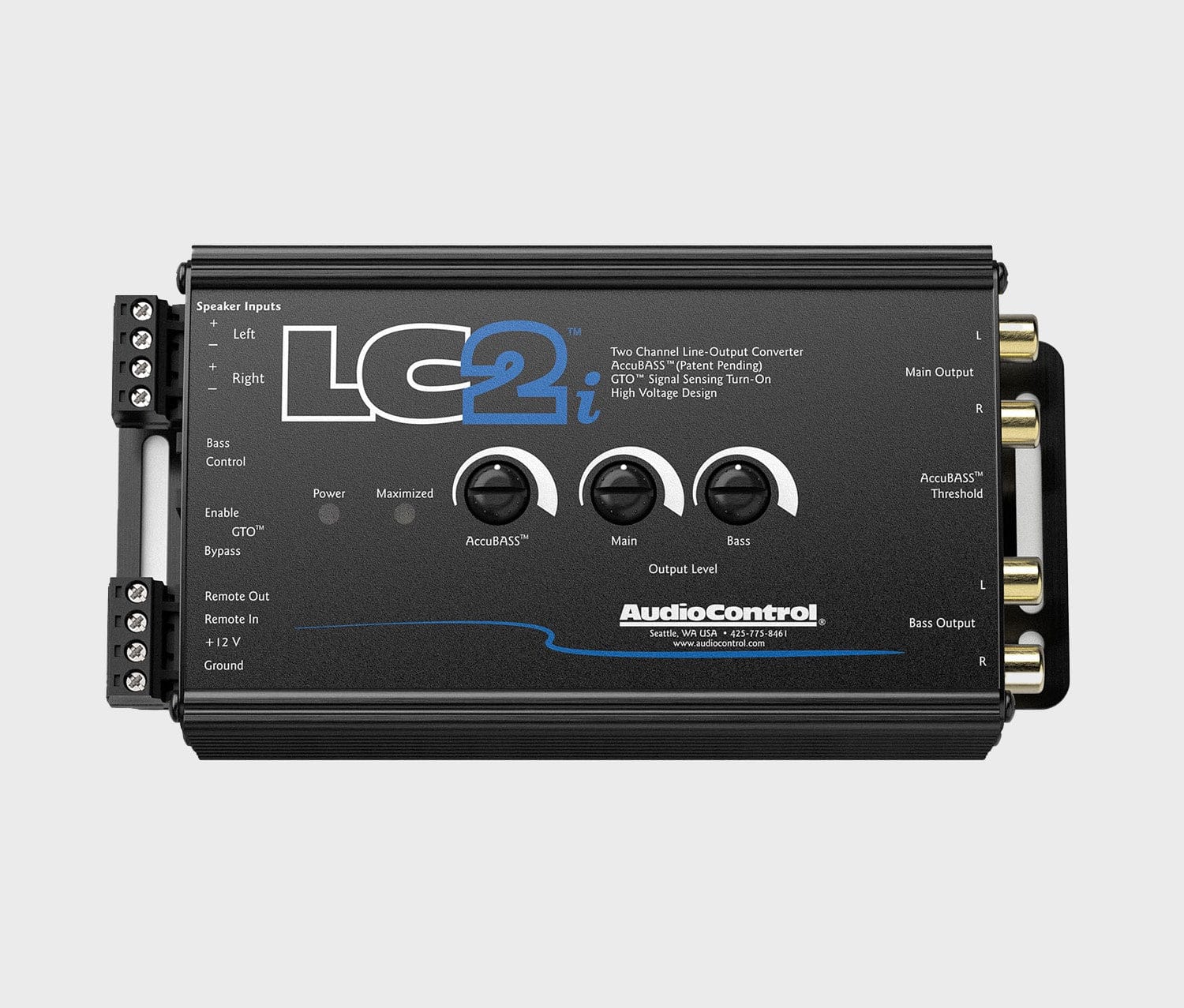

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.
features
- Two channels of Active speaker level inputs – Accept 400 watt signals per channel
- Fixed and variable outputs with discrete level controls
- AccuBASS® processing for correction of bass roll-off
- GTOTM Signal Sensing
- Input For Optional Remote Level Control
- Compact design
specifications
inputs
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 400W per channel at 4Ω
- Input Impedance: 20kΩ
outputs
- Preamp Outputs: 2 (2 channels main, 2 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Impedance: 150Ω
performance
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110 dB
- Frequency Response: 33 Hz – 100 kHz ±1 dB
control
- Remote In
- 12VDC Remote Out (always active when unit is on)
general
- Current Draw: 150mA
- Recommended Fuse Rating: 1A
