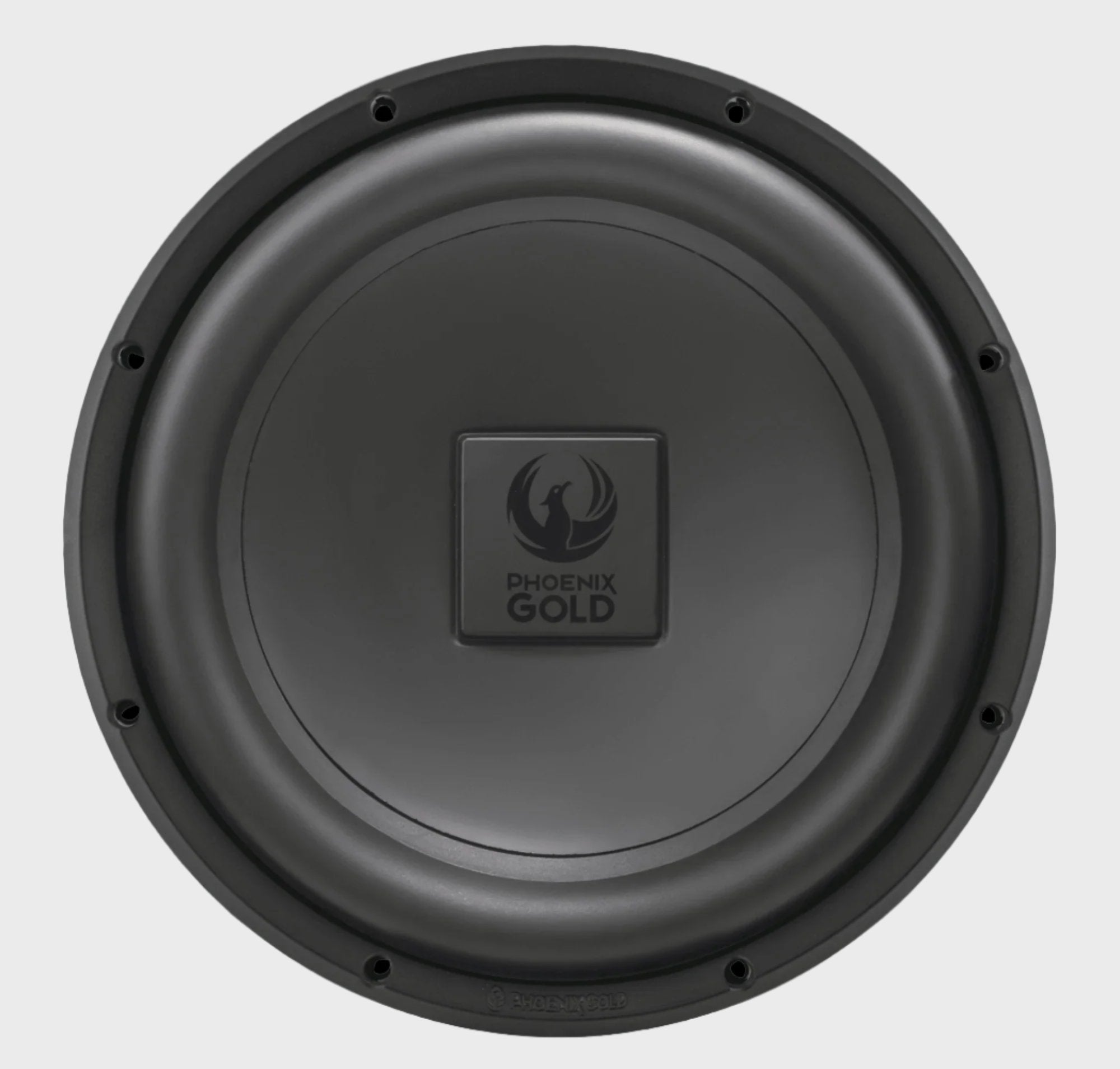

RX2 12" 200 Watt 4 Ohm Subwoofer
RX2 12" 200 Watt 4 Ohm Subwoofer
Precision Audio & Video Experts Storefront
87 Sunset Blvd
Stevens Point WI 54481
United States
RX2-series subwoofers are designed to give high performance at a great value.
Where most entry line woofers feature 1.5” voice coils, Phoenix Gold RX2 subwoofers feature long wound 2.0” coils which allows for 25mm of peak to peak excursion. This results in an ability to create deep, accurate bass in vented or sealed enclosures.
RX2 subwoofers are conservatively rated at 200w RMS and available in single and dual 4 Ohm configurations.
Features
- 25mm of Peak to Peak Excursion
- Single 4 Ohms Voice Coil
- High Excursion CAE/CAD Motor Design
- KlaraForm Vented Kapton Former technology reduces distortion by reducing heat and resistance
- UNICAP Technology provides a stiff piston for pronounced SPL
- Phoeniroll Surround Technology promotes linear motion
- Torriform Voice Coil Technology: Effectively dissipates heat and minimizes distortion
- Nickel Plated 12 Gauge Speaker Terminal
- Optimized for Sealed or Vented Enclosures
- Powder Coated Anti-Resonant Steel Basket
Specs
T/S Parameter |
RX2 12S |
Re (Dcr) |
3.4 |
FS (Hz) |
28 |
Sd (SqM) |
51 |
BL TM |
11.53 |
Qms |
6.6 |
Qes |
0.46 |
Qts |
0.43 |
Vas (cu M) |
69.35 |
Cms (uM/N) |
187.24 |
Mms (gms) |
171.98 |
SPL |
87.1dB |
Impedance (ohms) |
Single 4 Ohm |
