PARADIGM

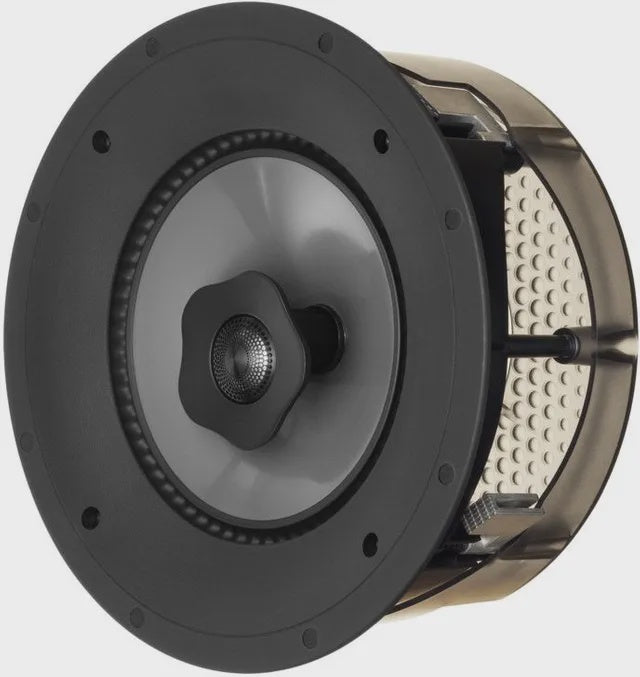

CI PRO 8" In Ceiling Speaker
CI PRO 8" In Ceiling Speaker
Precision Audio & Video Experts Storefront
87 Sunset Blvd
Stevens Point WI 54481
United States
Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.
CARBON-X™ Cones
Advanced
Shock-Mount™ System
mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
Patented† Active Ridge Technology (ART™) surrounds
Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.
| DESIGN | 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Nylon Reinforced Baffle |
| CROSSOVER | 2nd-order electro- acoustic at 2.5 kHz |
| HIGH FREQUENCY DRIVER | 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
| FREQUENCY RESPONSE ON-AXIS | ±3 dB from 64 Hz - 22 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3 dB from 64 Hz - 18 kHz |
| MID/BASS FREQUENCY DRIVER | 8” (20.3cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets |
| SENSITIVITY ROOM / ANECHOIC | 92 dB / 88 dB |
| LOW FREQUENCY EXTENSION | 39 Hz |
| SUITABLE AMPLIFIER POWER RANGE | 15-110 W |
| MAXIMUM INPUT POWER | 80 W |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 6.4 lbs (2.9 kg) |
| FINISHES | White, paintable grille, black speaker |
| CUT-OUT DIMENSIONS | 9-3/16” (23.4cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) |
3-7/8” (9.8cm) |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | 10-1/4” (diameter) x 4-1/2” (depth) (26.1cm x 11.4cm) |
