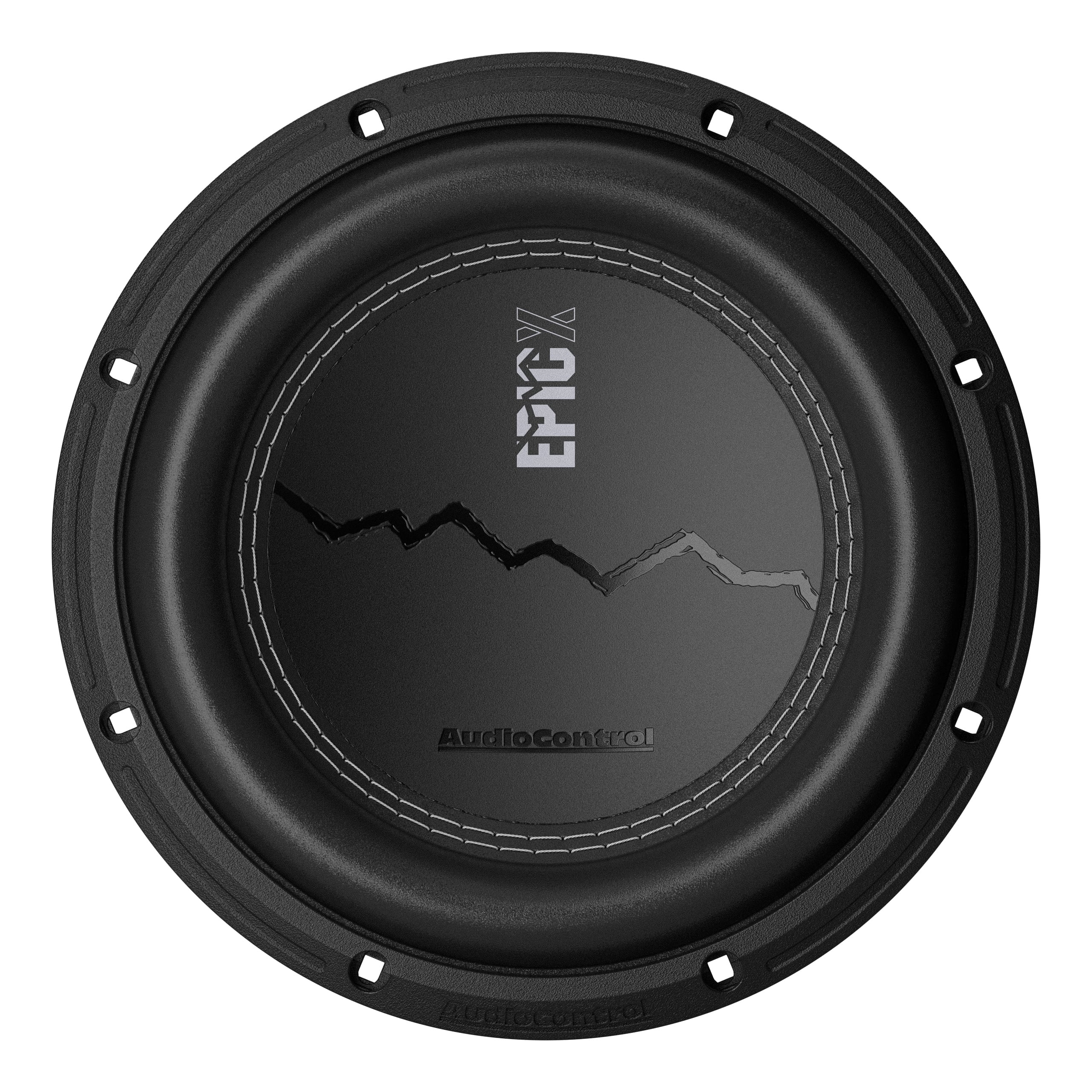

AudioControl EPICX 8" Subwoofer, 400 Watt RMS/600 Watt Max 4 Ohm Dual Voice Coil
AudioControl EPICX 8" Subwoofer, 400 Watt RMS/600 Watt Max 4 Ohm Dual Voice Coil
Precision Audio & Video Experts Storefront
87 Sunset Blvd
Stevens Point WI 54481
United States
Choose options
Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.
Precision-engineered from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures, and high-quality components that withstand heavy demand. Every element is optimized for output, efficiency, and durability, producing a sub that overachieves at every level!
If you’re pushing the limits in competition or want a system that dominates on the street, EPICX Series is made for you. These subs handle power without breaking a sweat, delivering the kind of deep, aggressive bass that turns heads.
Crafted with AudioControl’s legacy of build quality and innovative design at its core, the EPICX Series brings performance without sacrificing clarity. Built for those who love loud. No gimmicks — just raw, responsive performance you can count on.
FEATURES
- Composite Foam Surround: Delivers smooth controlled bass, ensuring a heart-pounding sound that doesn't compromise.
- High-Precision Motor Assembly: Maximizes efficiency and output, converting amplifier power into pure, impactful bass.
- Rigid Steel Basket: Provides unwavering strength and eliminates resonance for tighter bass and clearer sound.
- High-Temperature, Lightweight Voice Coil: Ensures lightning-fast, dynamic bass response and unwavering reliability under extreme power.
- One-Piece Dust Cap Design: Enhances cone rigidity for consistent, accurate, distortion-free bass reproduction.
- Non-Pressed Paper Cone: Delivers organic warmth, natural depth, and rich low-end character to your bass.
- Large-Gauge, Quick-Release Black Nickel Terminals: Ensures maximum conductivity and a rock-solid, vibration-proof connection for consistent power delivery.
- Pair with The EPICENTER: Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.
SPECIFICATIONS
Speaker Size 8 in / 200 mm
Power 400W RMS / 600W Max
Impedance 2 or 4 ohms
Voice Coil 2 in
Resonance Frequency 47.2 Hz
Efficiency 83.5 dB
Magnet Dimensions 5.31 x 2.44 x 0.98 in / 135 x 60 x 25 mm
IN THE BOX: (1) EPICX8D2 or EPICX8D4 Subwoofer, User Guide
DIMENSIONS
- Overall Diameter: 8.46 in / 215 mm
- Cut Out Diameter: 7.13 in / 181 mm
- Mounting Depth: 4.1 in / 103.9 mm
- Mounting Height: 0.8 in / 20 mm
- Motor Diameter (w/ Cover): 5.5 in / 140 mm
PORTED ENCLOSURE
- External Dimensions: 17″ W × 12″ H × 10.5″ D
- Net Internal Volume: 0.71 ft3
- Exterior Volume: 1.24 ft3
- Material Thickness: 0.75 in
- Port Area: 7.875 sq in
- Port Inlet: 0.75″ W × 10.5″H
- Port Length: 16 in
- Tuning Frequency: 40 Hz
SEALED ENCLOSURE (Ideal)
- External Dimensions: 16″ W × 10.5″ H × 7.5″ D
- Internal Volume: 0.65 ft3
- Material Thickness: 0.75 in
