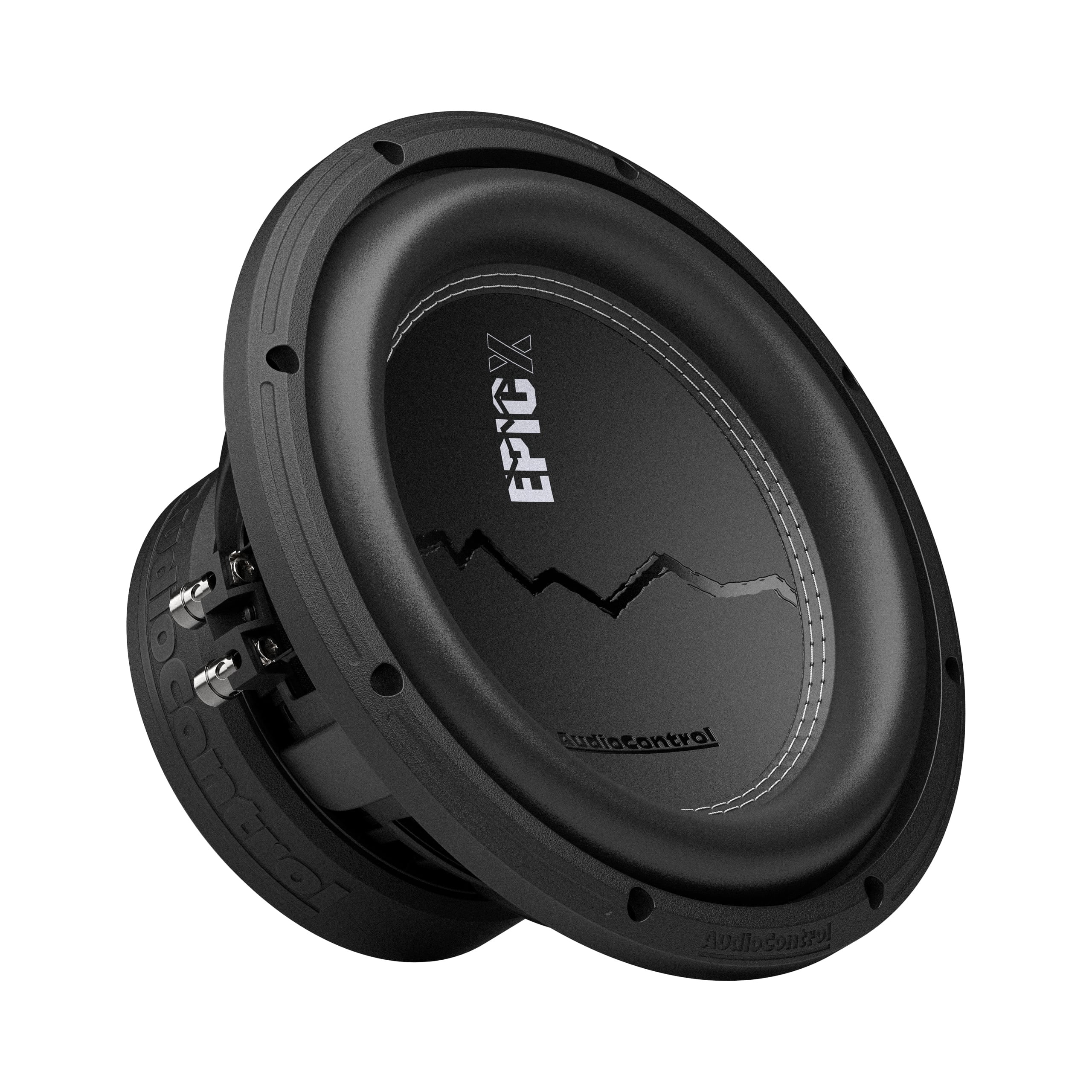

AudioControl EPICX 10" Subwoofer 500 Watt RMS/750 Watt Max Dual 4 Ohm Voice Coil
AudioControl EPICX 10" Subwoofer 500 Watt RMS/750 Watt Max Dual 4 Ohm Voice Coil
Precision Audio & Video Experts Storefront
87 Sunset Blvd
Stevens Point WI 54481
United States
Choose options
Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.
Precision-engineered from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures, and high-quality components that withstand heavy demand. Every element is optimized for output, efficiency, and durability, producing a sub that overachieves at every level!
If you’re pushing the limits in competition or want a system that dominates on the street, EPICX Series is made for you. These subs handle power without breaking a sweat, delivering the kind of deep, aggressive bass that turns heads.
Crafted with AudioControl’s legacy of build quality and innovative design at its core, the EPICX Series brings performance without sacrificing clarity. Built for those who love loud. No gimmicks — just raw, responsive performance you can count on.
FEATURES
-
Composite Foam Surround for Smooth, Controlled Bass
-
High-Precision Motor Assembly Improves Efficiency and Output
-
Rigid Steel Basket for Strength and Reduced Resonance
-
High-Temperature, Lightweight Voice Coil
-
One-Piece Dust Cap Design
-
Non-Pressed Paper Cone for Added Warmth and Depth
-
Large-Gauge, Quick-Release Black Nickel Terminals
-
Pair with The EPICENTER® for Unmatched Bass
- 500W RMS / 750W Max

SPECIFICATIONS
Speaker Size 10 in / 250 mm
Impedance 2 or 4 ohms
Voice Coil 2.38 in
Resonance Frequency 39.8 Hz
Efficiency 84.8 dB
Magnet Dimensions 6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm
DIMENSIONS
- Overall Diameter: 10.5 in / 269 mm
- Cut Out Diameter: 9.25 in / 235 mm
- Mounting Depth: 5.3 in / 135.8 mm
- Mounting Height: 1 in / 24 mm
- Motor Diameter (w/ Cover): 6.4 in / 162 mm
PORTED ENCLOSURE
- External Dimensions: 20.5″ W × 13.5″ H × 11.5″ D
- Net Internal Volume: 1.25 ft3
- Exterior Volume: 1.84 ft3
- Material Thickness: 0.75 in
- Port Area: 15 sq in
- Port Inlet: 1.25″ W × 12″H
- Port Length: 23 in
- Tuning Frequency: 35 Hz
SEALED ENCLOSURE (Ideal)
- External Dimensions: 14″ W × 12.75″ H × 11″ D
- Internal Volume: 0.625 ft3
- Material Thickness: 0.75 in
