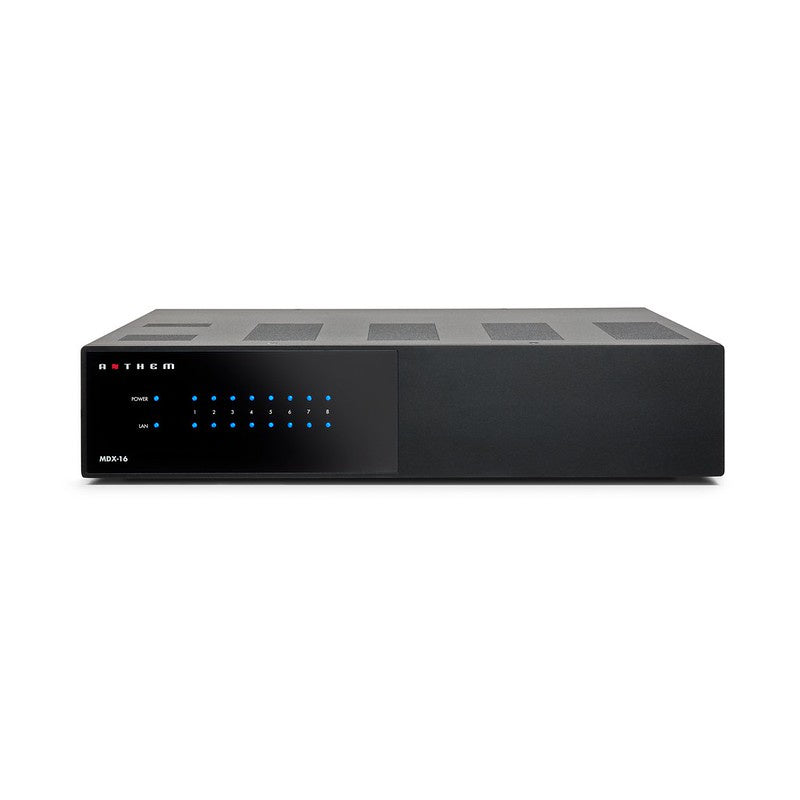

ANTHEM Matrix Amplifier 16Ch / 8 Matrix Zone Amplifier MDX-16


16Ch / 8 Matrix Zone Amplifier MDX-16

Sale price$3,499.99
Pickup available at Precision Audio & Video Experts Storefront Usually ready in 24 hours

16Ch / 8 Matrix Zone Amplifier MDX-16

Precision Audio & Video Experts Storefront

Pickup available, usually ready in 24 hours

87 Sunset Blvd
Stevens Point WI 54481
United States

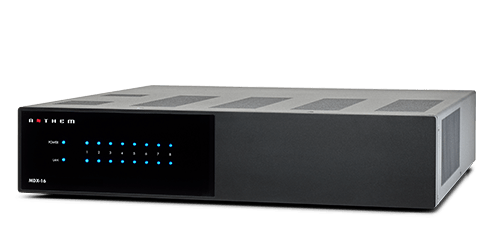

Anthem MDX-16 Distribution Power Amplifier

A distribution system that features an onboard DAC, fully powered independent-zone subwoofer connections, web-based set-up, and ARC® Genesis room correction for each zone

Class-D amplification with Anthem's Advanced Load Monitoring Technology delivers reliable performance even in the most demanding setups. Smooth, instantaneous digital switching output allows the linking of digital inputs between multiple amplifiers and analog pass-through connections allow dais-chaining of multiple MDX units.

Install and control subwoofers independently in separate zones, with dedicated outputs (both low and high level, including bridge mode), and zone-independent settings for the new, more advanced Anthem Room Correction (ARC® Genesis).

Toggle ARC Genesis on/off in each zone to hear the benefits of premium room optimization. Full digital/analog matrix switching allows you to assign any analog RCA, digital coaxial, or digital optical input to any output, either pre-configured via the web interface or switched in real-time via IP commands.


Amplifier type: Class-D, 8 or 16 channels

Power output (6, 8 ohm): 60 W, 120 W. Bridges to 200 W into 8 ohm

Sampling rate: Up to 192 kHz, 24 bit

Stereo RCA analog: 8
Coax RCA digital (S/PDIF): 2
Toslink (optical digital): 2

Mono RCA analog sub: 8
Stereo speaker level:
Stereo RCA passthrough: 2
Toslink (optical digital): 1

Ethernet: 1
Micro USB: 1
Serial (RS-232): 1
Trigger (3.5 mm jack): 2
